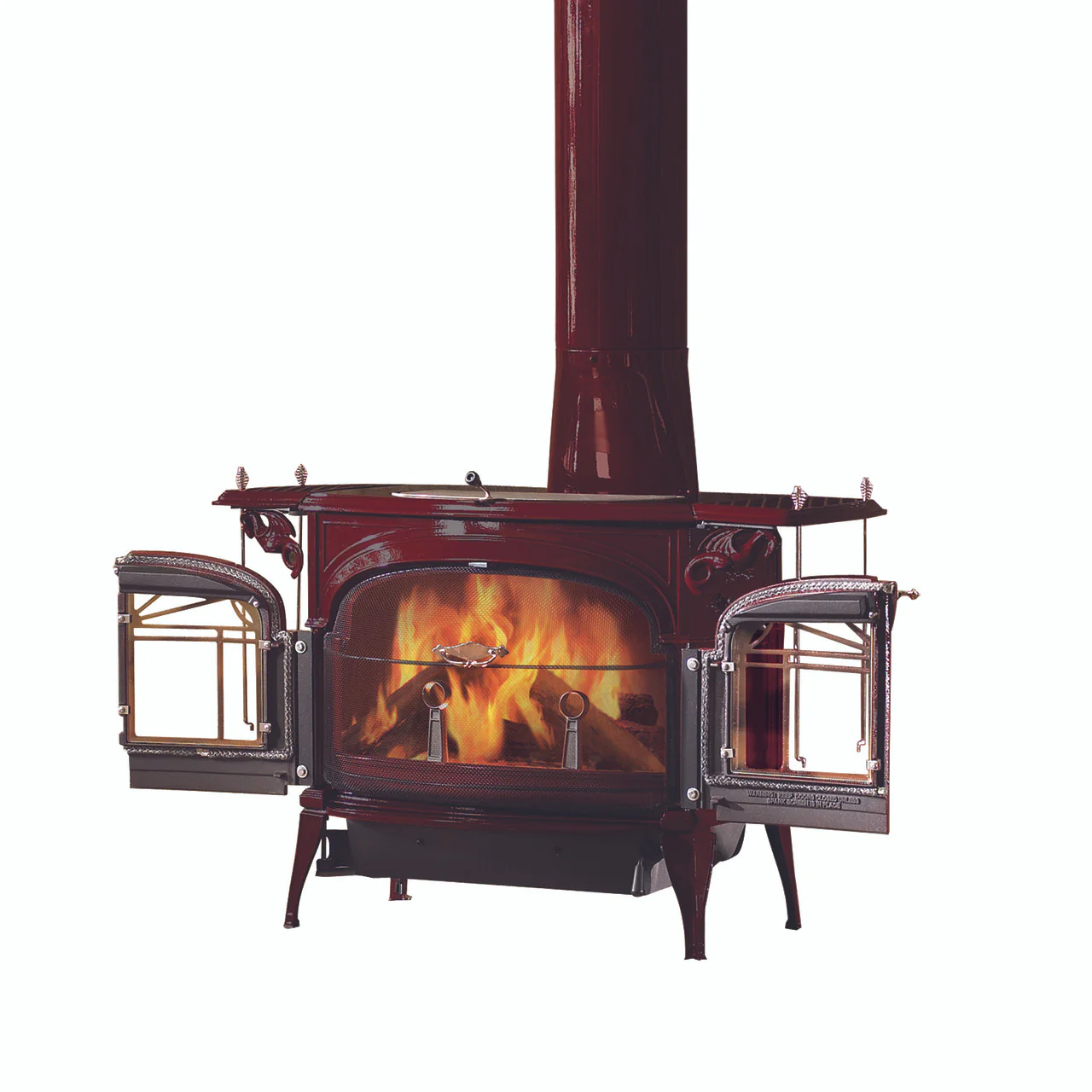

Vermont Castings Encore Wood Burning Stove - 2040-CAT-C

Made in the USA. The Encore FlexBurn provides more than heat: it’s a skillfully crafted, timeless piece of furniture. Great design bridges beauty and utility, and a finely-fashioned exterior with classic curves and smooth cast iron finish complements features made with care.

Function is an art of its own, and our dedication to the wood stove experience results in components designed with convenience in mind. Easily load wood from the top, saving effort and keeping smoke and ash contained. Cleanly remove ashes, even when the stove is hot, with the exclusive swing-out ash pan and handled cover.

• Reversible 6" Round Flue Collar Included

• Bottom and Flue Collar Heat Shield Standard

• Outside Air Ready

• 8" Reversable Oval Flue Collars Available for 8" Pipe Installs

QUICK LOOK

Heating Capacity	900-2300  sq. ft.
Max BTUs/hr	47,000
Burn Time	12 hrs
Log Size	22"
Ash Pan	Side-swing
Efficiency	86% at 1.2 g/hr (Catalytic)78% at 1.5 g/hr (Non-Catalytic)

FEATURES

	EFFICIENT DESIGN The top load design of these stoves makes them easier to fill to nearly 100% of their capacity — leading to longer burn times and greater heat output. Plus you won’t have to fill them as often. The top load design is also safer, virtually eliminating the escape of hot embers while loading.
	EASY TO CLEAN Exclusive swing-out ash pan allows you to cleanly remove ashes, even when stove is hot.
	HEAT AT YOUR FINGERTIPS These stoves give you the power of thermostatic control. Prevent over-fire and get longer, more even burn times by controlling the heat being generated. By simply adjusting the thermostatic air, you can use less wood and achieve a more comfortable room temperature.
	From Warming Shelves to the Stove-Top Steamer and Child-Guard Screen, we have the finest acce



MODEL SPECIFICATIONS



Width:	27"
Height:	25-3/4"
Depth:	22-3/4"
Peak BTU/hr Output1:	47,000
Heating Capacity2:	900 - 2,300 sq. ft.
Maximum Burn Time3:	12 hrs
Firebox Capacity:	2.3 cu. ft.
Max Log Length:	22"
Efficiency4:	80% (Catalytic) 73% (Non-Catalytic)
Emissions:	1.1 g/hr (Catalytic) 1.6 g/hr (Non-Catalytic)



DIGITAL BROCHURE

OWNERS MANUAL
