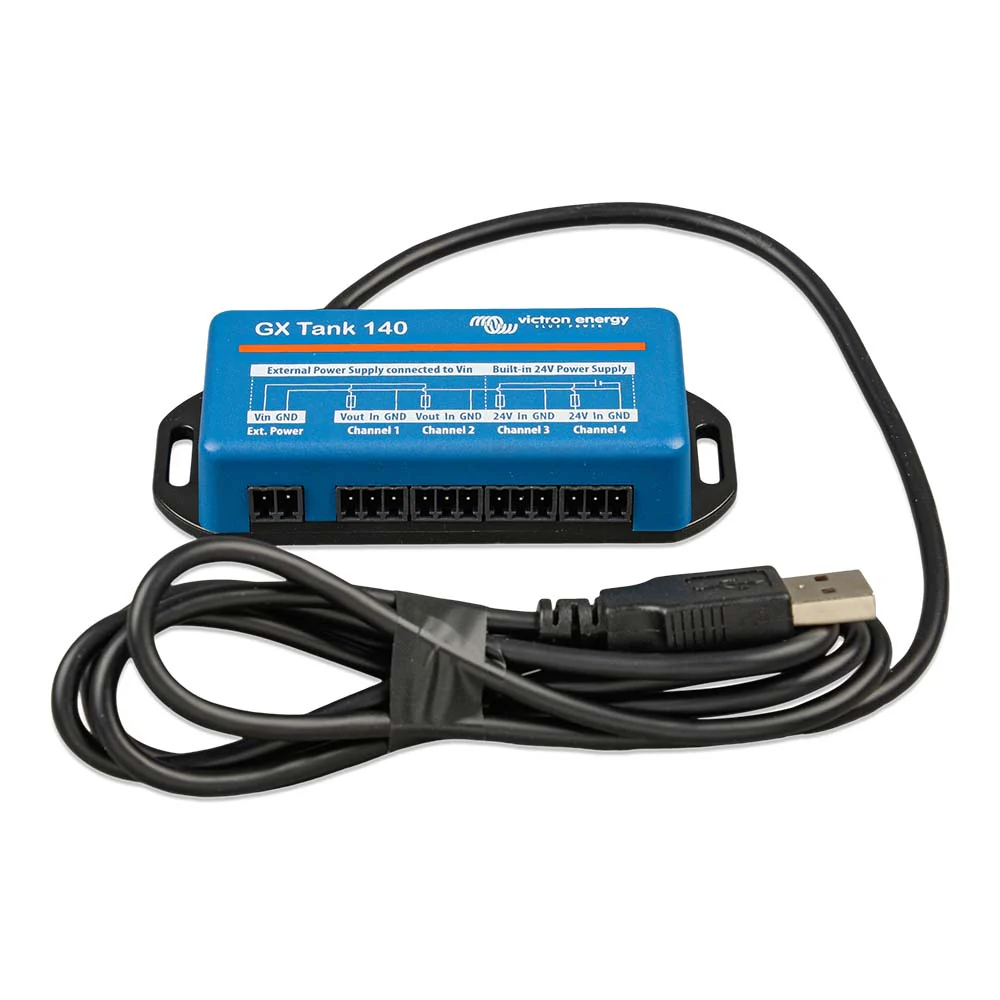

GX Tank 140 Tank Monitoring for 4-20 MA, 1-10VDC Sensors - Monitors Up to 4 Sensors *Sensor Not Included

The GX Tank 140 takes readings from up to four tank level sensors. It is an accessory for our range of GX system monitoring products, of which the Cerbo GX is the most commonly used model.

Tank levels can be read out locally in the system, see screenshot, as well remotely through our VRM Portal.

The GX Tank is compatible with current senders (4 to 20 mA) as well as voltage senders (0 to 10 V). The connection to the GX Device is via USB, which is also how the GX Tank is powered: no additional power wires are required.

Tank sender wiring is kept as simple as possible: two of the four inputs provide a 24 V power supply, to power the sender. The other two channels do require an external power supply, and there is power in the terminal together with fused outputs to facilitate that.

Upper and lower limits are configurable, to allow using senders that provide only part of the scale, for example, 0 to 5 V.

To provide a stable reading, the readings are averaged damping. The damping can be configured between 1 and 60 secon

Marine Plumbing & Ventilation

Price

Collections

Victron GX Tank 140 Tank Monitoring f/4-20 MA, 1-10VDC Sensors - Monitors Up to 4 Sensors *Sensor Not Included [BPP920140100]
